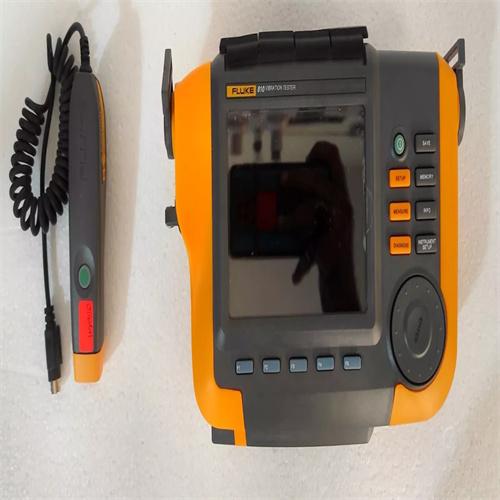

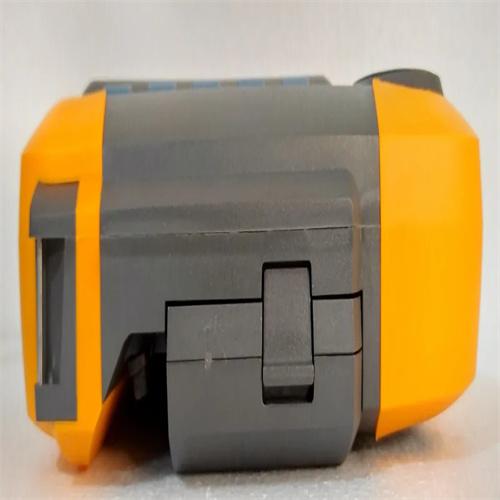

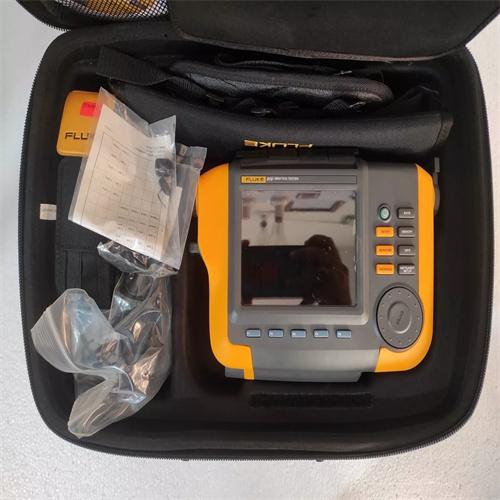

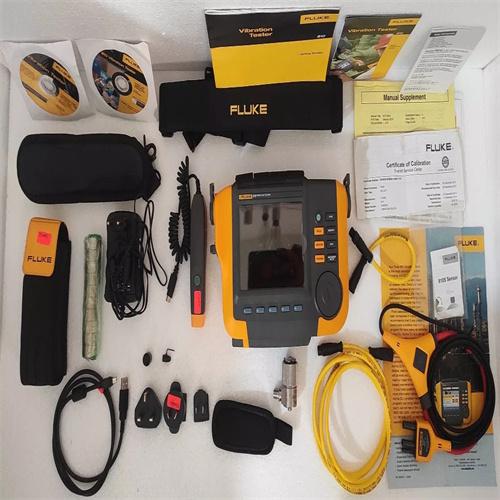

Fluke 810 Vibration Tester Handheld Mechanical Machine Vibration Tester

Fluke 810 Handheld Mechanical Machine Vibration Tester w/ Tachometer Fluke-810

Item NO.:
Fluke 810
Payment:
T/T
Color:
Contact salesperson Vicky.xia via WeChat or email
Shipping Port:
Xiamen China
Lead Time:
IN STOCK
Order(MOQ):
1

Product Detail

Sales manager: Vicky.xia
Email: vicky@kerienplc.com
Mob(Whatsapp/Wechat) :+ 86 13695017671
QQ：259680581
Skype :+ 86 13695017671

Introduction to Fluke 810 vibration tester
Fluke 810 1. Functional features
Fluke 810 Trouble diagnosis
It can realize on-board identification and location of common mechanical faults (such as bearings, misalignment, imbalance, looseness), allowing maintenance work to focus on the root cause of the fault and reduce the risk of unplanned downtime. It can detect machine faults at the first measurement without any previous measurement history. It combines diagnostic conclusions, severity and repair recommendations to help make targeted maintenance decisions and solve key problems first.
Overall vibration levels provide a quick assessment of overall machine health directly from the diagnostics screen. A severity scale with four severity levels helps prioritize maintenance work and advise technicians on the correct repair actions, while detailed diagnostic reports and spectrum plots help confirm data quality and narrow down the root cause of the problem.
Fluke 810 Data related functions
It has 2GB of expandable onboard memory, providing enough space for storing machine data. At the same time, ViewerPC software has expanded data storage and tracking capacity, and can be used to diagnose faulty equipment, understand the root cause of the fault, inspect equipment before and after planned maintenance, and confirm the repair effect, etc.
Fluke 810 Auxiliary measurement function
The laser tachometer accurately measures machine operating speed, thereby improving diagnostic accuracy, with a range of 6.0 to 99,999rpm and an accuracy of ±0.01% and ±1 digit from 6.0 to 5999.9rpm and ±0.05% from 5999.9 to 99999rpm. and ±1 bit, resolution 0.1rpm, effective range 1cm to 100cm (0.4in to 39.27in), response time 1s (60rpm).
The measurement time of the three-axis accelerometer is reduced by 2/3 compared with the single-axis accelerometer. The sensor sensitivity is 100mV/g (±5%, 25°C), the acceleration range is 80g peak amplitude, the nonlinearity is 1%, and the frequency response is Z2 to 7,000. Hz±3dB, X, Y2 to 5,000Hz±3dB.
Fluke 810 Other features
Onboard correlation sensitivity helps provide real-time tips and guidance to new users. The self-test feature ensures good performance and longer working time. Flexible machine speed configuration enables testing of a wide range of assets, including belt drives, gearboxes and bevel gears. It can also be used to commission new equipment and ensure correct installation, providing quantifiable evidence of equipment status to drive investment and prioritize repairs or replacements. and schedule maintenance activities to work more efficiently, predict equipment failure before it occurs and control spare parts inventory, train new or less experienced technicians and build trust and skills within the team.
