variable speed drive ATV71 - 37kW-50HP - 480V - EMC filter-graphic terminal

LV431851 Circuit breaker

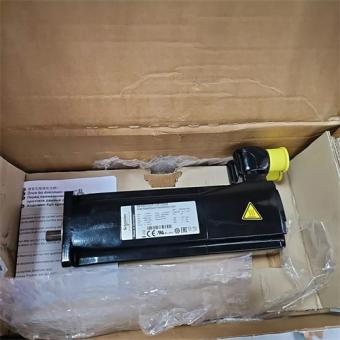

This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 3-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end with holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 2.9A and a continuous power of 1130W. The shaft dimensions are 11mm (diameter) x 23mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 212.5mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 3kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 4 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.

TCSEAAF1LFS00 | Schneider Electric | Fiber optic adaptor for TCSESM switches

Triconex 9761-210 Panel Field Termination Option, 4.5 in (11.43 cm) Width (across DIN rail), 5 in (12.7 cm) Length (along DIN rail) and 4.25 in (10.795 cm) Height (out from DIN rail) Simple Type: Termination Panel

Introduce for Triconex Tricon's control system: The main features of Tricon's control system Tricon is a programmable and process control technology with high fault tolerance. Its characteristics are as follows: A. Triple modular redundancy structure (TMR) is provided, with three identical sub-circuits each performing an independent degree of control. There is also a dedicated hardware/software architecture for "voting" on input and output. Ability to tolerate harsh industrial environment. C. It can be installed on site and can be installed and repaired at the module level online on site without disturbing the field wiring. D. Supports up to 118 I/O modules (analog and digital) and optional communication modules. Communication modules can Connect to Modbus hosts and dependents, or to Foxboro and Honeywell Distributed Control System (DCS), other Tricons in a peer-to-peer network, and external hosts on a TCP/IP network. E. Can support remote I/O modules located up to 12 km away from the mainframe. F. Develop and debug the control program by using the programming software based on Windows NT system. G. Intelligent functions in input and output modules to reduce workload on the main processor. Each I/O module has three microprocessors. The input module's microprocessor filters and repairs the input and diagnoses hardware failures on the module. The output module microprocessor provides information for the voting of the output data, checks the validity of the output state through the feedback loop voltage at the output end, and can diagnose the field line problems. H. Provide comprehensive online diagnosis with repair capability. I. Routine maintenance can be performed while Tricon is up and running without interrupting the control process. J. Provide "hot standby" support for I/O modules, which can be used in certain critical situations where services cannot be provided in a timely manner.

Main Range of Product Modicon Quantum automation platform Product or Component Type Rack backplane Product Specific Application For distributed I/O modules For remote I/O modules For local I/O modules Complementary Free slots 6 Mounting Support Mounting plate Fixing Mode By screw Net Weight 1.41 lb(US) (0.64 kg) Ordering and shipping details Category US1PC2118155 Discount Schedule PC21 GTIN 3595861127357 Returnability Yes Country of origin FR Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 1.81 in (4.6 cm) Package 1 Width 11.65 in (29.6 cm) Package 1 Length 14.88 in (37.8 cm) Package 1 Weight 2.80 lb(US) (1.27 kg)

Control Mode Open-loop vector or V/Hz induction motor control Open-loop Rotor Flux Control for induction motors (RFC-A) Open-loop permanent magnet motor control (RFC-S) Closed-loop Rotor Flux Control for induction motors (RFC-A) Closed-loop permanent magnet motor control (RFC-S) Active Front End (AFE) power quality convertor

Schneider VZ3TM2200M4371 Motors, Actuators, Solenoids and Drivers Accessories

This extended I/O card enables your drive to meet the needs of more complex or extensive applications. It comprises four logic inputs, two analog inputs, one input for PTC probe and one frequency control input. It also comprises three logic outputs and two analog outputs. It is compatible with Altivar 61 and Altivar 71.

LV525342 circuit breaker EasyPact CVS250F, 36 kA at 415 VAC, 200 A rating thermal magnetic TM-D trip unit, 4P 3d EasyPact CVS250F is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 200A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS250F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

This switch is part of the Modicon Networking range, an offer of industrial network switches. This TCP/IP extended managed switch has 10/100BASE-TX - 16 ports for copper cable. Ethernet services are configured via web server, VLAN, multicast filtering, data stream control, IGMP snooping, SNMP traps and SYSLOG. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 9.4W and maximum number of switches in a ring is 50. It is furnished with 6-way removable connector. The supported transmission medium is twisted shielded pair CAT 5E copper cable. It is an IP20 rated product. Its dimensions are 111mm (width) x 111mm (depth) x 131mm (height). It weighs 0.6kg. It is suitable for all industrial automation segment applications. This switch is part of the Modicon Networking range, an offer of industrial network switches. This TCP/IP extended managed switch has 10/100BASE-TX - 16 ports for copper cable. Ethernet services are configured via web server, VLAN, multicast filtering, data stream control, IGMP snooping, SNMP traps and SYSLOG. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 9.4W and maximum number of switches in a ring is 50. It is furnished with 6-way removable connector. The supported transmission medium is twisted shielded pair CAT 5E copper cable. It is an IP20 rated product.
