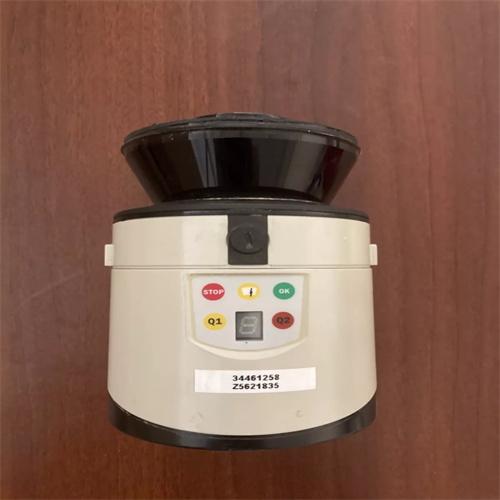

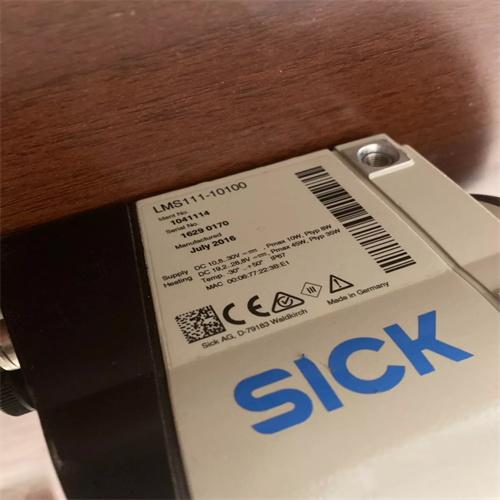

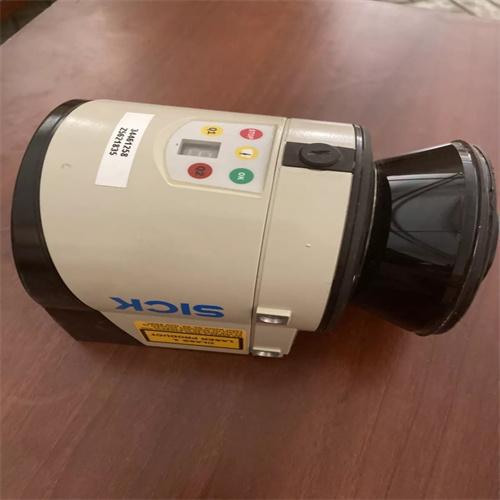

SICK LMS111-10100 LiDAR Sensor Infared Laser Scanner

LMS11110100 SICK LMS111-10100 Laser Scanner Brand New Fast shipping#DHL/FedEx

Item NO.:
LMS111-10100
Payment:
T/T
Color:
Contact salesperson Vicky.xia via WeChat or email
Shipping Port:
Xiamen China
Lead Time:
IN STOCK
Order(MOQ):
1

Product Detail

Sales manager: Vicky.xia
Email: vicky@kerienplc.com
Mob(Whatsapp/Wechat) :+ 86 13695017671
QQ：259680581
Skype :+ 86 13695017671

LMS111-10100 laser scanning radar related information
LMS111-10100 Basic overview
The LMS111-10100 laser scanning radar is a product launched by the German company SICK. It is a compact and economical laser scanning radar, mainly used for anti-collision, measurement and security purposes in outdoor areas.
LMS111-10100 Performance parameters
Scanning range: 20m (for normal conditions, black objects with 10% reflectivity can still reach 18m)
Scanning angle: Max: 270°, can be adjusted in the setting parameters
Angle resolution: 0.25°/0.5° adjustable
Scanning frequency: 25/50HZ
Response time: 40ms/20ms
Resolution/system error: 10mm/typ.±30mm
Laser diode wavelength: infrared light 905 nanometers
Data interface: RS232/Ethernet/CAN
Communication rate: 57600/11520 baud rate
Switching output: 2Relay, 1PNP
Laser protection level: Level 1 (eye safety)
Working voltage: 10.8V-30VDC
Power consumption: Typ.8W, heating device type 35W
Protection level: IP67, adaptable to harsh outdoor environments, with integrated heater and fog correction functions.
Working temperature/storage temperature: -30-50℃/-30-70℃
Vibration test: complies with EN60068-2-6 (1995-04) standard
EMA test: complies with EN61000-6-2(2005-08), EN61000-6-3(2007-01) standards
LMS111-10100 Product features
Adopting multiple echo technology: It enables accurate measurement even in harsh environments. Non-contact detection adopts the latest multiple echo detection technology (two echoes).
Self-test function: self-test is possible and the test is stable.
Multiple communication methods: can communicate with the host computer through RS232 or Ethernet, and can download parameters through the front RS232 parameter configuration interface, and has 4 inputs (two of which can be used to send encoder signals), 3 switches quantity output, and can also transmit switching quantity signals through the CANBUS module.
Flexible area configuration: The protection areas of various graphics can be set according to the needs of the site, and the graphics can be easily modified at any time according to the needs of the site.
LMS111-10100 Application fields
Anti-collision applications: For example, anti-collision in scenarios such as container terminals, logistics, and robots.
Vehicle related: used for vehicle separation and vehicle classification at vehicle toll stations, etc.
Automatic agricultural machinery and equipment: such as automatic navigation of automatic agricultural machinery and equipment.
Shelf material assembly: plays a role in error-proofing of shelf material assembly.
Automatic crawling process control: Contributes to the control of the automatic crawling process.
Security field: It is an ideal product for security.
