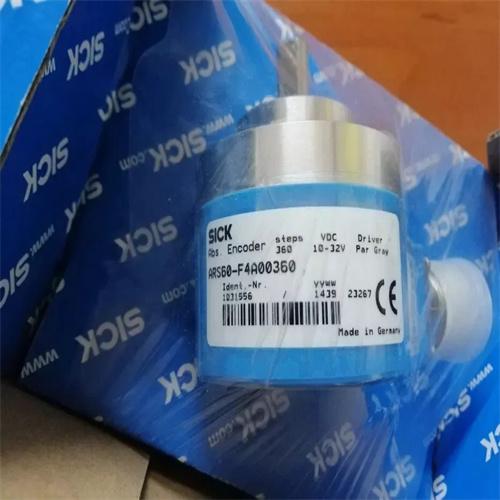

SICK ARS60-F4A00360 encoder

ARS60-F4A00360 SICK encoder brand new FedEx or DHL

Item NO.:
ARS60-F4A00360
Payment:
T/T
Color:
Contact salesperson Vicky.xia via WeChat or email
Shipping Port:
Xiamen China
Lead Time:
IN STOCK
Order(MOQ):
1

Product Detail

Sales manager: Vicky.xia

Email: vicky@kerienplc.com
Mob(Whatsapp/Wechat) :+ 86 13695017671
QQ：259680581

Skype :+ 86 13695017671

Basic information of ARS60-F4A00360 encoder
(1) Product series and types ARS60-F4A00360
ARS60-F4A00360 belongs to the ARS60SSI/Parallel product series. It is a value-type single-turn encoder. The communication interface is a parallel interface. The mechanical specifications are a solid shaft, clamping flange, the shaft diameter is 10mm, and the plug is M23, 21-pin, radial.
(2) Performance related ARS60-F4A00360
Accuracy related ARS60-F4A00360
It has a repetition standard deviation σr of 0.035° (binary steps), 0.046° (non-binary steps) (according to DIN ISO1319-1, the upper and lower error limit cases depend on the installation situation, the absolute values apply for the symmetrical case, i.e. upper , the same amount of deviation in the downward direction, and 68.3% of the measured values are within the maximum range according to DIN ISO55350-13).
Electrical characteristics ARS60-F4A00360
The operating voltage is 10VDC-32VDC, with reverse polarity protection. Calculated in accordance with relevant standards (based on the rated load of the component, the average ambient temperature of 40°C, and the frequency of use of 8760 hours/year, all electronic faults are considered dangerous faults ), the protection period is 300 years (EN ISO13849-1), but this product is not a safety component made in accordance with the Machinery Directive. For detailed information。
Mechanical properties ARS60-F4A00360
Mechanical specifications are 10mm×18mm, weight 0.3kg, starting torque 0.4Ncm, working torque 0.3Ncm, allowable shaft load 10N/axial direction, moment of inertia 3.6×10⁹ turn, angular acceleration meets relevant standards, and shell protection level meets The standard allows a relative humidity of 90% (optical scanning elements do not allow condensation), and can withstand shock and vibration of 50g, 11ms (according to EN60068-2-27) and 20g, 10Hz-2000Hz (according to EN60068-2-6).
