GE dual power supply control panel MX150 detailed introduction

Product overview

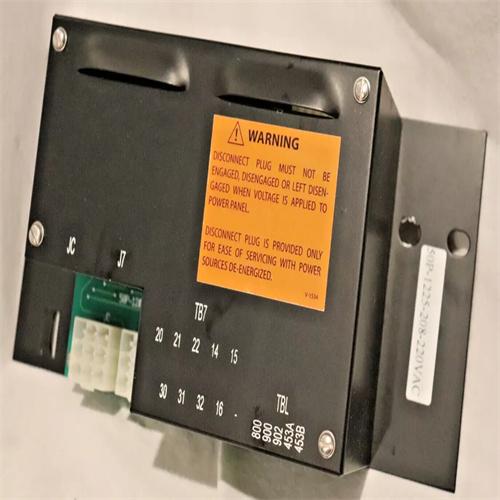

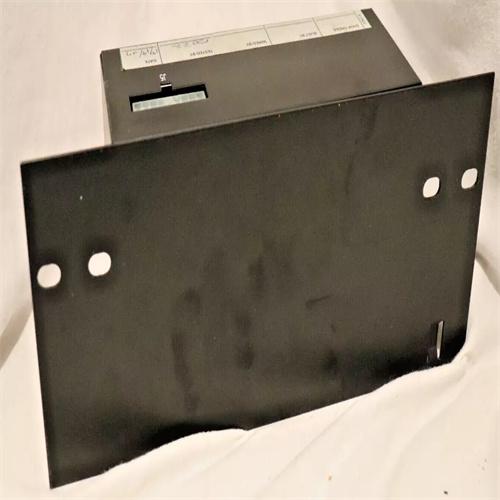

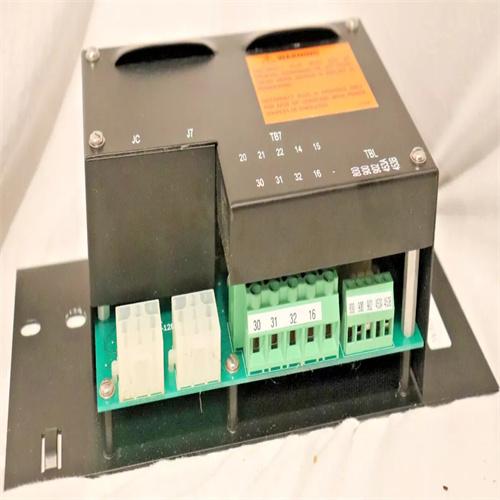

GE dual power control panel MX150 is a high-precision controller specially designed for emergency systems or backup systems. Its main function is to automatically switch to the backup power supply when the power supply voltage drops to a preset limit to ensure continuous operation of the system. The MX150 controller performs voltage detection and system control through a microcontroller installed at the control panel door, which has modern technology and provides high-precision control.

Features

Voltage detection and system control: The MX150 controller can monitor the power supply voltage in real time and automatically switch to backup power when the voltage drops to a preset limit.

High-reliability design: As an embedded digital controller, the MX150 is designed to run for a long time without special attention, making it suitable for a variety of applications.

Multiple certification standards: GE's Zenith transfer switch is designed to meet the full system capacity or motor load capacity, and has passed UL certification, CSA certification, and complies with IEC standard 947.

Technical parameters and specifications

The MX150 controller is designed with a variety of application scenarios in mind, and its rating range, conversion type, and switch type may vary depending on the specific application and switching conditions. In addition, MX150 also has a power synchronization monitoring function, which can check whether the two power supplies are synchronized (whether the frequency is within 7 electrical degrees of phase difference) to ensure the safety and stability of power switching.

Main parameters

Rating range: The specific value needs to be determined according to the application.

Conversion type: may include automatic switching, manual switching, etc.

Switch type: May include protective devices such as molded case circuit breakers or fused switches.
