ABB OT630ES03K fuse switch wholesale accelerated delivery

Sales manager: Vicky.xia Email: vicky@kerienplc.com Mob(Whatsapp/Wechat) :+ 86 13695017671 QQ：259680581 Skype :+ 86 13695017671

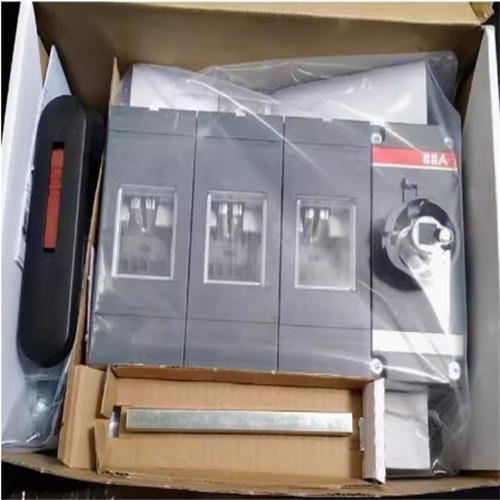

Catalog Description:OT630ES03K SWITCH-DISCONNECTOR
Detailed Description: 3-pole, side-operated, base-mounted switch disconnector,
With black direct mount handle, includes terminal bolt kit
Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
End of life instructions: 1SCC301119M0201
Environmental information: 1SCC301232D0201
Product Environmental Statement - EPD:1SCC301284D0201
REACH statement:1SCC011021D0201
RoHS information:1SCC011020D0201
Toxic Substances Control Act - TSCA:1SCC011025D0201
Product Environmental Statement - EPD:1SCC301284D0201
Minimum order quantity: 1 piece
Customs tariff number: 85365080
Country of Origin:Finland (FI)
Data sheet, technical information: 1SCC301020C0201
Instructions and manuals: 1SCC301071M0205
Mechanical drawing:1SCC301676F0001
1SCC301675F0001
OT800ES03K.igs
Product Environmental Statement - EPD:1SCC301284D0201
End of Life Instructions:1SCC301119M0201
Product net width: 341 mm
Product net height: 250 mm
Product net depth: 130 mm
Product net weight: 7.1 kg
Rated operating current AC-21A (Ie): (380 ... 415 V) 630 A
(500V) 630A
(690V) 630A
(1000V) 630A
Rated operating current AC-22A (Ie): (380 ... 415 V) 630 A
(500V) 630A
(690V) 630A
Rated operating current AC-23A (Ie): (380 ... 415 V) 630 A
(500V) 630A
(690V) 630A
Rated thermal current (free air) (Ith): Θ = 40 °C 630 A
Rated heating current (Ithe):Fully Enclosed 630 A
Rated impulse withstand voltage (Uimp):12 kV
Rated insulation voltage (Ui): acc. to IEC/EN 60664-1 1000 V
Rated operating voltage: Main Circuit 1000 V
Rated short-circuit making capacity (Icm): (690 V) 80 kA
Rated continuous current (Icw): for 1 s 20 kA
Rated limited short-circuit current (Inc): (800 A fuse, 500 V) 100 kA
(800 A fuse, 690 V) 80 kA
Power loss:at Rated Operating Conditions per Pole 25 W
Pollution level: 3
Handle Color:Black
Handle type: Direct mounted pistol type handle
Switch operating mechanism:Mechanism at the End of the Switch03 (Left Side)
Distance between two phases: Standard
Wire terminal position:Top In - Bottom Out Bottom In - Top Out
Operating mode:Side operated
Standard:IEC 60947-3
Special functions:No
Installation type:Base mounting
Number of poles: 3
Protection level: Front IP00
Terminal type: Lug terminals
Tightening torque: acc. IEC 60947-1 50 … 75 N·m
Mechanical life:10000
Lock Type: Yes
Tightening torque: acc. IEC 60947-1 50 … 75 N·m
RoHS status:Following EU Directive 2011/65/EU and
Amendment 2015/863 July 22, 2019
Environmental information: 1SCC301232D0201
Toxic Substances Control Act - TSCA:1SCC011025D0201
ATEX certification:No certification needed
Declaration of Conformity - CE:1SCC301140D2704
DNV GL Certificate:1SCC301184D0203
REACH Declaration:1SCC011021D0201
UL certification:No certification needed
VDE certification:No certification needed
Level 1 packaging unit: box 1 piece
Level 1 packaging width: 270 mm
Level 1 packaging length: 420 mm
Level 1 packaging height: 220 mm
Level 1 packaging total weight: 7.8 kg
Level 1 packaging EAN:6417019308944
Object classification code: Q
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
e-level:V11.1: 27371403
WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):3660846
