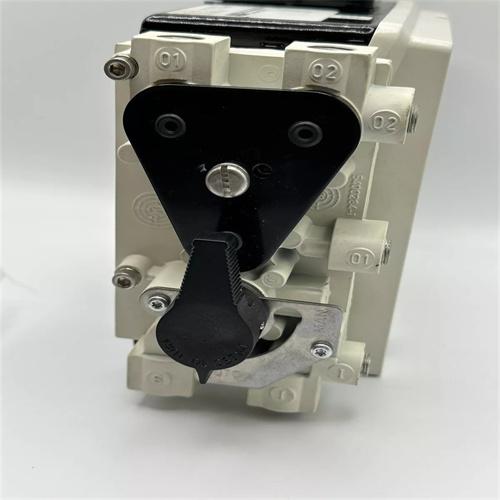

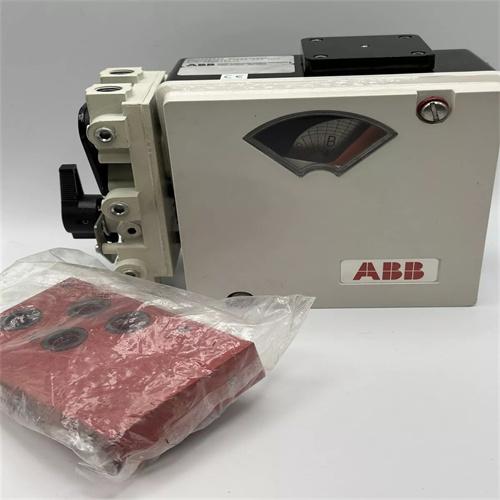

ABB AV1121030 PNEUMATIC positioning converter has a one-year warranty

Abb UP20A00000 Universal Rotary Pneumatic Actuator with Av1121030 Positioner Expedited Shipping

Item NO.:
AV1121030
Payment:
T/T
Shipping Port:
Xiamen China
Lead Time:
IN STOCK
Order(MOQ):
1

Product Detail

Sales manager: Vicky.xia

Email: vicky@kerienplc.com
Mob(Whatsapp/Wechat) :+ 86 13695017671
QQ：259680581

Skype :+ 86 13695017671

AV1121030 DAC is mainly composed of digital registers, analog electronic switches, bit-weighted networks, summing operational amplifiers and reference voltage sources (or constant current sources).
AV1121030 uses each digit of the digital quantity stored in the digital register to control the analog electronic switch of the corresponding bit, so that the bit with the number 1 generates a current value proportional to its bit weight on the bit weight network, and then the operational amplifier controls each current The values are summed and converted into voltage values.
AV1121030 Depending on the bit weight network, different types of DACs can be formed, such as weighted resistor network DAC, R–2R inverted T-shaped resistor network DAC, and single-value current network DAC. The conversion accuracy of the weighted resistor network DAC depends on the reference voltage VREF, as well as the accuracy of the analog electronic switch, operational amplifier and each weighted resistor value.
The disadvantage of AV1121030 is that the resistance values of each resistor are different. When there are many digits, the resistance values are very different. This brings great difficulties to ensure accuracy, especially for the production of integrated circuits, which is very disadvantageous. Therefore, in the integrated circuit This circuit is rarely used alone in a DAC.
AV1121030 It consists of several identical R, 2R network sections, each section corresponds to an input bit. Sections are connected in series to form an inverted T-shaped network. The R–2R inverted T-shaped resistor network DAC is one that works faster and has many applications. Compared with the weighted resistor network, since it only has two resistance values of R and 2R, it overcomes the shortcomings of many weighted resistor values and large resistance differences.

AV1121030 current-mode DAC switches the constant current source into a resistor network. The internal resistance of the constant current source is extremely large, which is equivalent to an open circuit. Therefore, together with the electronic switch, it has a relatively small impact on its conversion accuracy, and because most electronic switches use The non-saturated ECL switching circuit enables this DAC to achieve high-speed conversion and high conversion accuracy.
