CIMR-HB4A0180ABC is a Inverter-General Purpose produced by Yaskawa

S600 I/O Digital Input Module. 32 channels, 48 V d.c., opto-isolated in four groups, sequence of event or pulse catching capability

UFC719AE01 3BHB003041R0001 3BHB000272R0001 The Control Unit is responsible for process management. Just like the logistics distribution department of the factory, the control unit is the command and control center of the entire CPU, consisting of the Instruction Register IR(Instruction Register), the instruction Decoder ID(Instruction Decoder) and the Operation controller OC(Operation) Controller) consists of three components, which are extremely important for coordinating the orderly work of the entire computer. The control unit can be part of the CPU or installed outside the CPU. UFC719AE01 3BHB003041R0001 3BHB000272R0001 Controller Unit (CU) is one of the components of the CPU. Its basic function is to access instructions from inside, analyze instructions and execute instructions. A control unit is a control instrument or control component that realizes one or more control laws. For example, multiple transmission control unit and proxy setting control unit. UFC719AE01 3BHB003041R0001 3BHB000272R0001 No matter which type of control unit, the principle is to control each part of the CPU through the control signal sent by the control unit. Control units can be broadly divided into the following two categories. Microprogram type, which reads and sends control signals by microprogram. The microprogram is executed through a simple digital path called a microsequencer (microcomputer). Hardware type control unit. The control signal is sent directly by the digital path. Due to the scale of integrated circuits and the progress of design technology, this kind of control unit has become possible.

Brand:  ABB Part Number: 3BHB004027R0101 GV C700 AE01 3BHL000382P0101 5SHX0445D0001 Weight: 0.31 kg Dimensions: 32x23x3.7cm Place Of Origin: Switzerland Description: ABB | 3BHB004027R0101 GV C700 AE01 3BHL000382P0101 5SHX0445D0001 | DCS MODULE

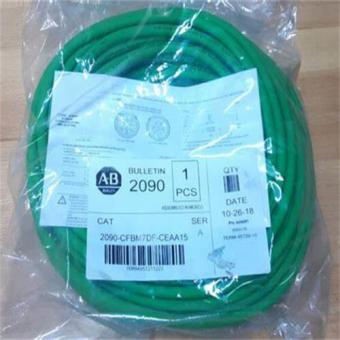

Bulletin 2090 Cable compatibility note Cable Note: Cable Function Motor Feedback Only Cable Options SIN/COS High-Resolution/Resolver Encoder Type Drive End Connector Type Drive-end, Flying-lead Motor End Connector Type SpeedTec DIN Connector Flex Type Standard (Non-Flex) Encoder note Encoder Note: Cable Length 15 Meters

The  Transmitter TEU 211 (-Ex) is used to measure temperature and other process variables. It converts the input variable into a load-independent direct current 4...20 mA. The transmitter is supplied with: --standard parameters of --customized parameters

Designation: ACS800-X2/X4, R7 FAN Catalog Description: ACS800-X2/X4, R7 FAN; PREV.MAINT. KIT, 6 YEARS Long Description: ACS800-X2/X4, R7 FAN

ABB Type Designation: 3300V  1500A Country of Origin: Switzerland (CH) Customs Tariff Number: 8541290000 Frame Size: Spare_Parts Gross Volume: 1.011 dm³ Gross Weight: 1.21 kg Invoice Description: HiPak Single IGBT Module Medium Description: Package: HiPak2, 40 mm Minimum Order Quantity: 1 piece Order Multiple: 1 piece Package Level 1 Depth / Length: 190 mm Package Level 1 Gross Weight: 1.21 kg Package Level 1 Height: 38 mm Package Level 1 Units: 1 piece Package Level 1 Width: 140 mm Part Type: New Product Name: Control System Accessory Product Net Depth / Length: 190 mm Product Net Height: 38 mm Product Net Weight: 1.21 kg Product Net Width: 140 mm

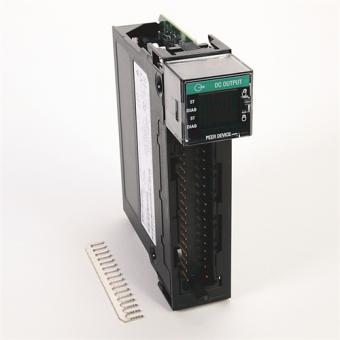

10--30 V DC Fast Isolated Peer to Peer Output with PWM 16 Pts(36 Pin) Variety of voltages 8 to 32 points per module Isolated and nonisolated module types Point-level output fault states Direct-connect or rack-optimized communication Field-side diagnostics on select modules

The Allen-Bradley 1756-L83EP processor is a ControlLogix processor unit that is based on the EtherNet/IP Communication network. It comes with 32 tasks and it has 1000 programs per task as well as unlimited event triggers. This unit features a digital I/O count of 128,000 I/O at maximum along with an analog I/O count of 4000 I/O at maximum. The module provides the user with a communication speed of 12 Mbps and it has the option of supporting either 100 or 250 Ethernet Nodes. The 1756-L83EP processor has a user memory capacity of 10 MB and 50 Volts of isolation voltage (continuous). It has a thermal dissipation rating of 21.2 BTU per hour with a power dissipation rating of 6.2 Watts. This unit has a current draw of 1.2 Amps at 5.1 Volts as well as a current draw of 5 milliamps at 1.2 Volts DC.    The 1756-L83EP processor also supports other optional communication options including THE EtherNet, ControlNet, EtherNet/IP, and third-party options such as device networks. For the Ethernet communication unit, it is essential that the users consider the connections to the controller along with the input and output module connections. They support direct connection to the EtherNet/IP network without requiring a bridge module. This controller is intended for use with an SD card since these cards have been tested and confirmed to be compatible and usable with the 1756-L83EP processor. They can also withstand extreme industrial temperature levels. The Allen-Bradley 1756-L83EP processor unit features an optional non-volatile storage memory unit and it comes with a 2 GB SD card. It has a non-removable storage for energy.

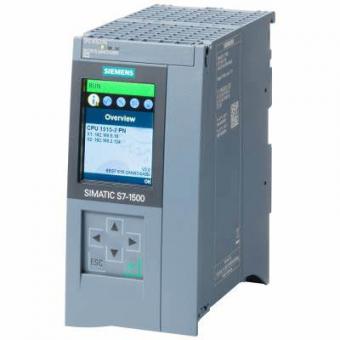

SIMATIC S7-1500, CPU 1515-2 PN, central processing unit with work memory 1 MB for program and 4.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 6 ns bit performance, SIMATIC Memory Card require

Alternative Part Number: TM-C 1600/115-230 Manufacturer: ABB Pricing Unit: Each Tariff code: 85369095 Generic code: 0002700001 GTIN/UPC/EAN: 8012542018131

variable speed drive ATV71 - 37kW-50HP - 480V - EMC filter-graphic terminal
